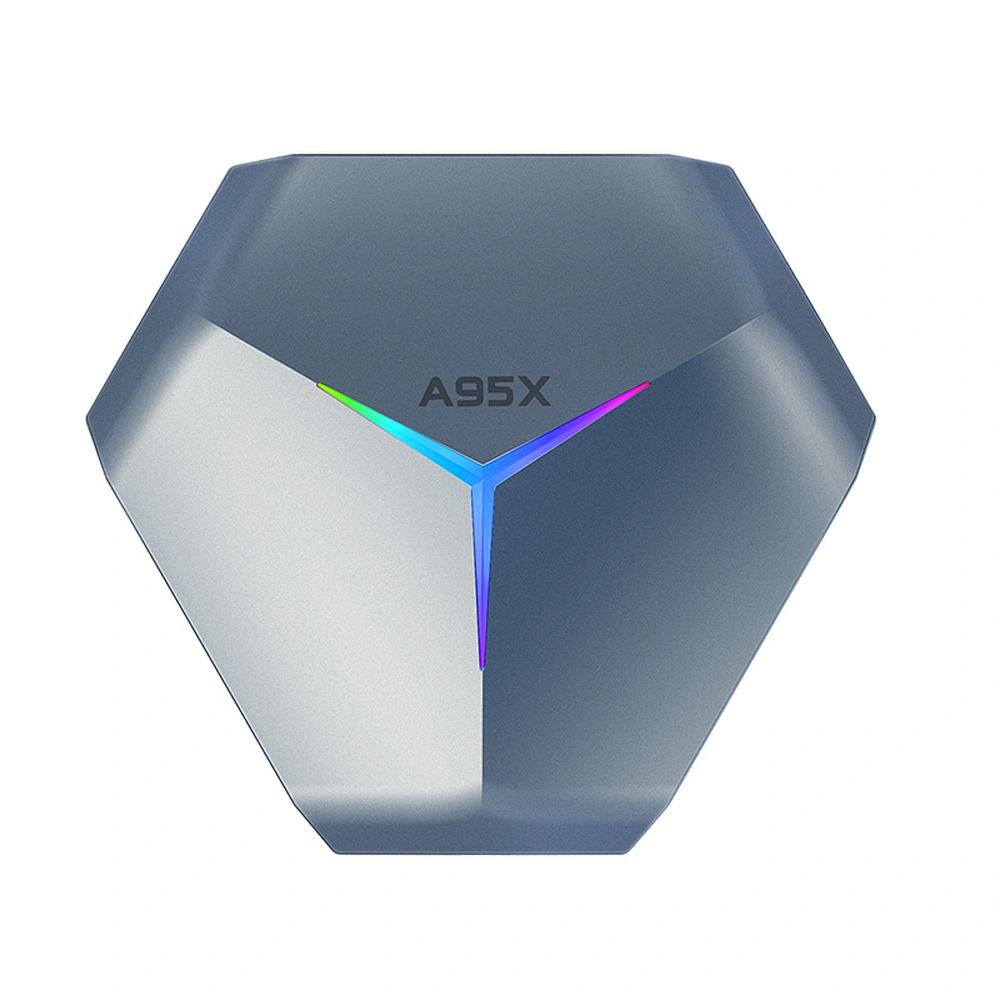

A95XF4 Amlogic S905X4 Android 11 Set Top Box
RH-A95X F4
A95XF4 CUP Quad-core ARM Cortex-A55 (Amlogic S905X4) up to 2.0GHz,G31 GPU,
Ram 2G, 4GB optional; EMMC 16GB, 32GB, 64GB, 128GB optional;
Support AV1 MP-10@L5.1 up to 4Kx2K@60fps,
VP9 Profile-2 up to 8Kx4K@24fps;
Ram 2G, 4GB optional; EMMC 16GB, 32GB, 64GB, 128GB optional;
Support AV1 MP-10@L5.1 up to 4Kx2K@60fps,
VP9 Profile-2 up to 8Kx4K@24fps;
Quantity
| A95XF4 Set Top Box System hardware configuration: | |||||
| Type | Details | Descriptions | |||
| CPU | Type | quad-core ARM Cortex-A55 (Amlogic S905X4) | |||
| Speed | 2.0GHz | ||||
| GPU | Type | G31 GPU | |||
| RAM | Capacity | 2GB/4GB(optional) | |||
| ROM | EMMC | 16GB/32GB/64GB/128GB(optional) | |||
| A95XF4 Set Top Box Network Connections: | |||||
| Type | Details | Descriptions | |||
| WIFI | WIFI module | IEEE 802.11 a/b/g/n/ac（2.4G/5GH）+BT4.1 | |||
| Ethernet Network | RJ45 | RJ45 10/100M | |||
| A95XF4 Set Top Box Interface Configuration: | |||||
| Type | Details | Descriptions | |||
| Memory card socket | External memory | Support SDSC/SDHC/SDXC | |||
| USB interface | Data transfer supportive | USB2.0x1 USB3.0x1 | |||
| AV jack | AV output | ∮ 3.5mm standard jack | |||
| DC connector | Power | ∮5.5 mm | |||
| HD interface | Audio/Video output | HD2.1 | |||
| Type C | N/A | ||||
| SPIDF jack | Audio output | Optical | |||
| Keyboard | Input device | USB device | |||
| Mouse | Input device | USB device | |||
| Remote Control | Input device | IR Remote/2.4GHz Wireless Remote Controlle(optional) | |||
| A95XF4 Set Top Box Accessories: | |||||
| Type | Details | Descriptions | |||
| Power Adapter | Standard Configuration | ∮5.5 mm DC 5V@2A | |||
| A95XF4 Set Top Box Software Configuration: | |||||
| Type | Details | Descriptions | |||
| Operating System | Operating system version | Android 11.0 | |||
| Video Decoder | AV1 MP-10@L5.1 up to 4Kx2K@60fps, VP9 Profile-2 up to 8Kx4K@24fps, H.265 HEVC MP-10@L5.1 up to 8Kx4K@24fps, AVS2-P2 Profile up to 4Kx2K@60fps, H.264 AVC HP@L5.1 up to 4Kx2K@30fps , H.264 MVC up to 1080P@60fps, MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496), WMV/VC-1 SP/MP/AP up to 1080P@60fps, AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps, MPEG-2 MP/HL up to 1080P@60fps (ISO-13818), MPEG-1 MP/HL up to 1080P@60fps (ISO-11172), RealVideo 8/9/10 up to 1080P@60fps | ||||
| Audio Decoder | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing | ||||
